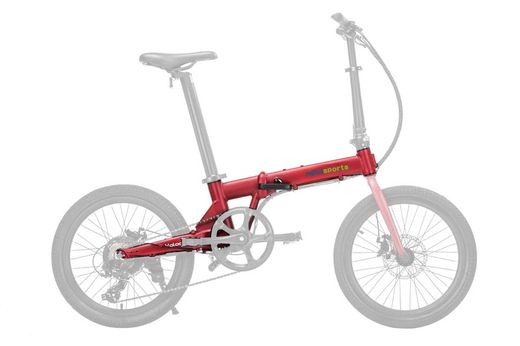

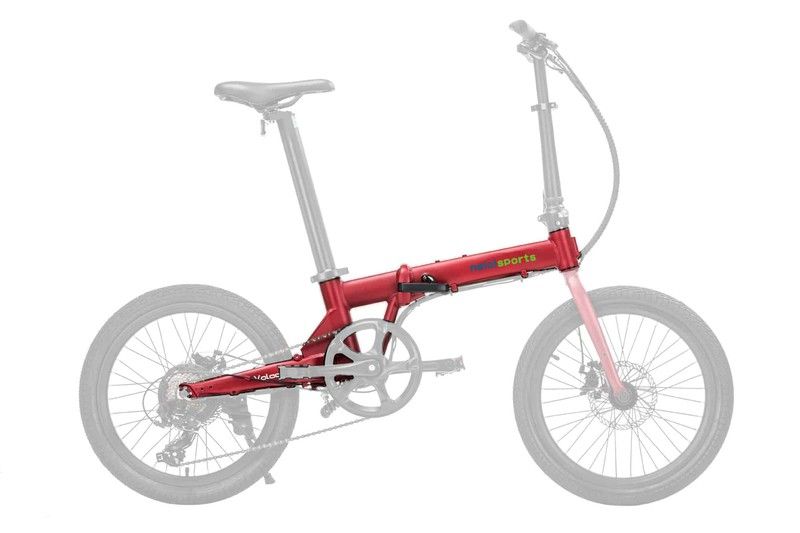

Frame
N2+ model is very similar to N1+, but with wider frame and wheel sizes. It has a light, strong 6061 aluminium alloy frame. It has a tubular structure with a Z-shaped elliptical cross-section, with a cut-out and hinge in the middle. When unfolded, the bike is secured by a locking system that ensures a rigid and stable position for riding.

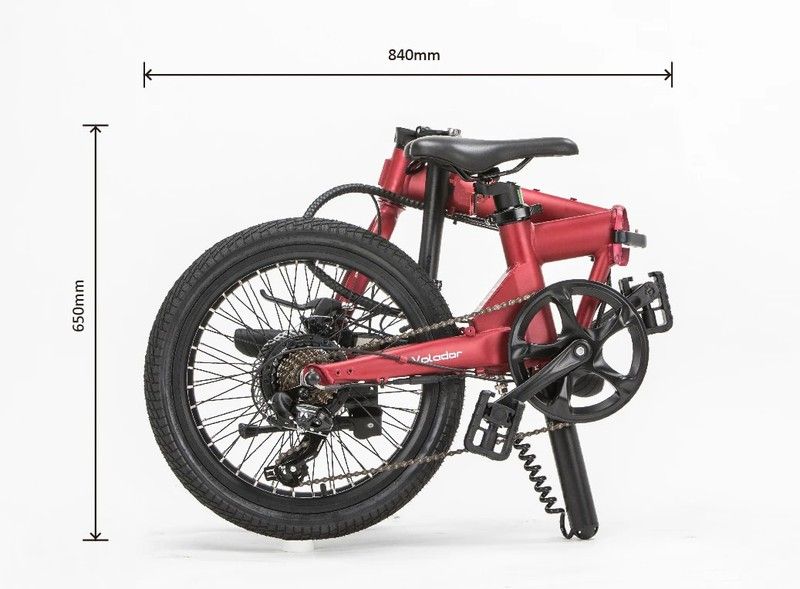

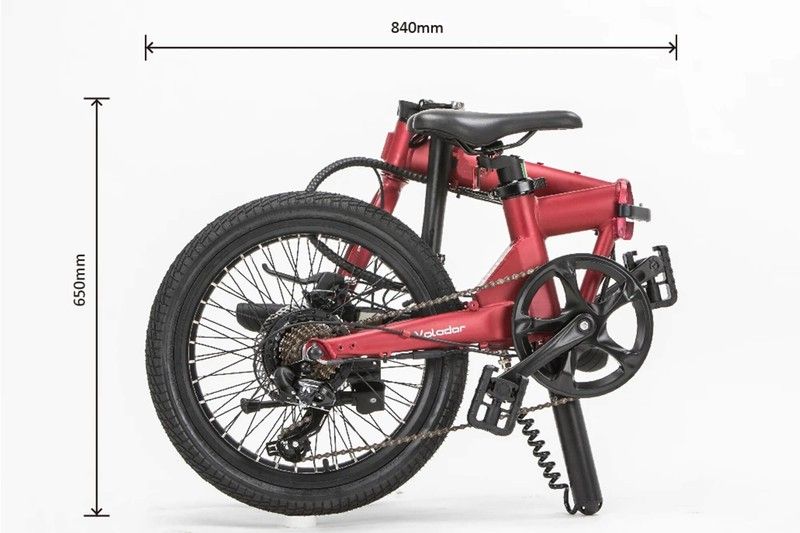

Folding system
The N2+ model's folding system is intuitive, easy and fast. It involves two steps. The first step involves rotating the front part of the frame 180° to position the front wheel parallel to the rear wheel. The second step involves folding the handlebar post and handlebars to sit alongside the wheels. To stabilise the bike when it's folded, it is necessary to lower the seat post until it touches the ground and becomes the third point of support.

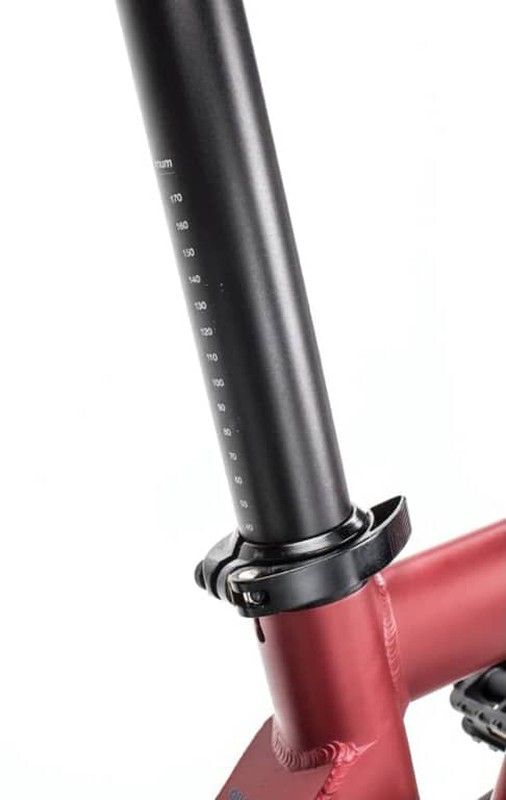

Removable lithium battery
The N2+ model is equipped with a 36V LG lithium battery with a 7Ah charge capacity, giving it a riding range of up to 50 km (according to the manufacturer). The battery fits neatly into the seat post, where the charging port and main power switch are also located. It can be easily removed, transported and charged anywhere without needing bike to be nearby.
The charging system features an innovative BMS, which prevents the battery from overcharging and overheating and regulates the release of energy for greater efficiency and longer use.

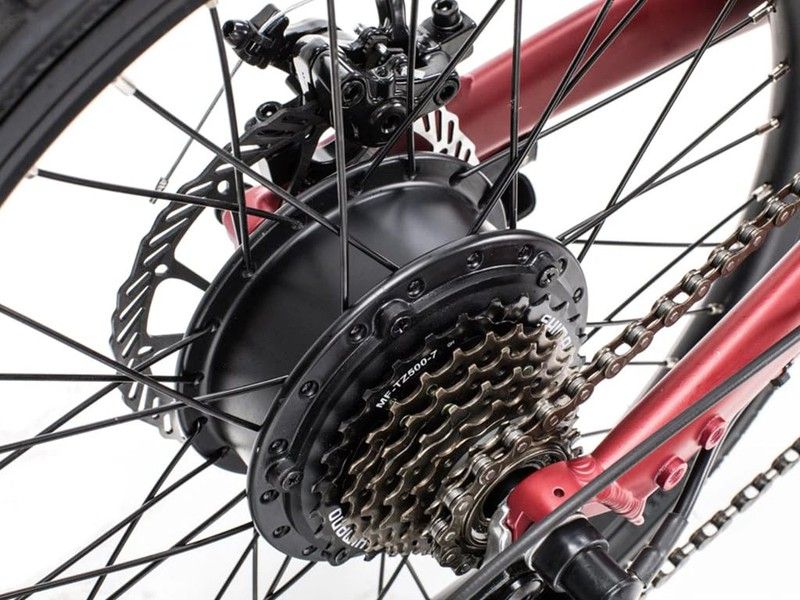

36V and 250W motor
The N2+ features a 36V, 250W motor located in the rear wheel, which is has a factory-set power limitation to stop the bike from exceeding 25 km/h. By law, when the bike reaches this speed, the motor must stop providing assistance. The motor is powerful enough to meet the demands of overcoming steep slopes.
A pedalling pressure Torque type sensor controls the motor assistance depending on which of the five levels has been chosen.
It has a clutch system that allows the bike to roll without any resistance should the rider want to cycle without any help from the motor.

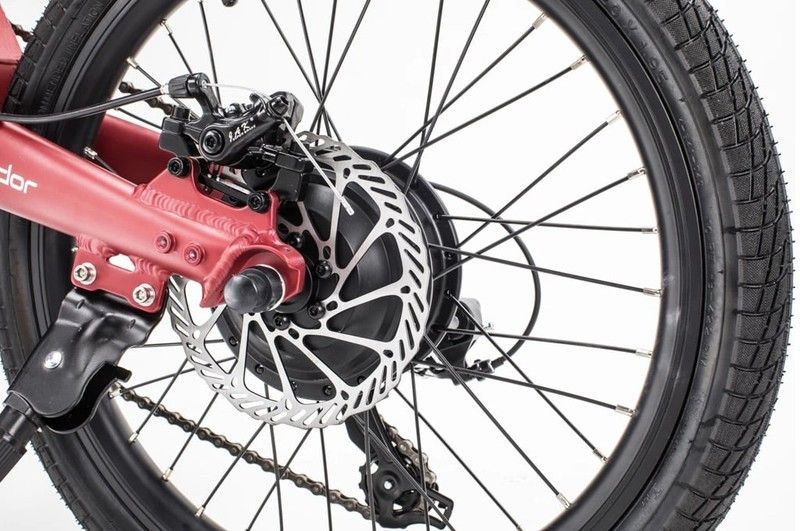

160 mm hydraulic disc brakes
The N2+ is equipped with 160 mm hydraulic disc brakes on both the front and rear wheels. They offer great braking power and guarantee to stop the bike within a few metres in case of emergency in all riding conditions. In addition, squeezing the brakes automatically disables the motor, facilitating a more immediate brake response.

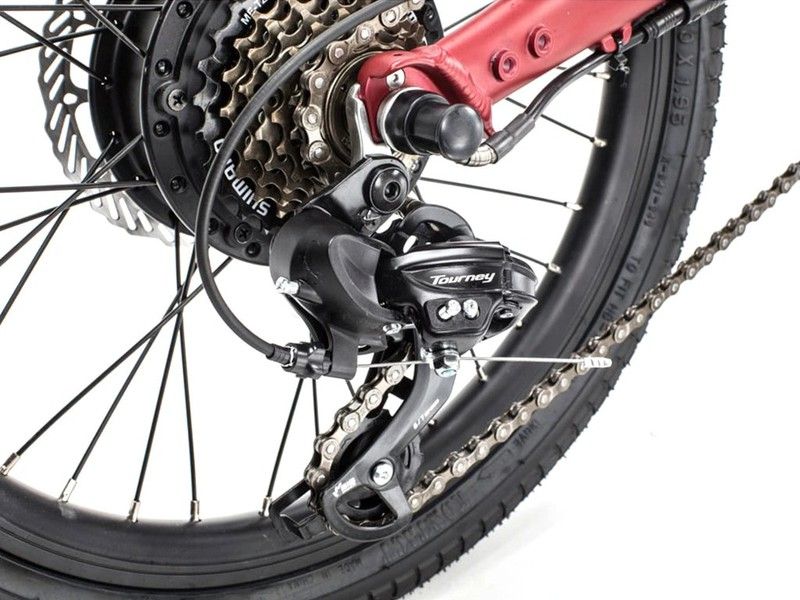

7-speed transmission
The N2+'s 7-speed transmission adjusts the pedalling effort without forcing the motor. The shift lever on the handlebars delivers accurate gear selection according to the gradient of the road. The derailleur is part of the Shimano 7-speed Tourney series.

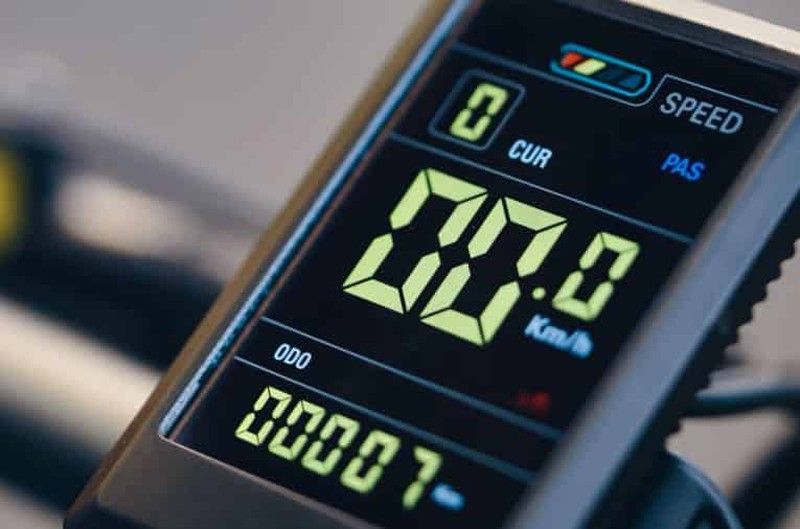

LCD multifunction display
The N2+ is equipped with a backlit display that features clear, easy-to-read graphics. It displays the data needed to monitor all riding parameters. It indicates real-time speed, lap time, distance travelled, remaining battery, motor assistance level and provides access to other functions such as the headlights and settings menu. The display is also equipped with a USB port to charge other devices such as mobile phones, smart watches and tablets.
